Ultrafuse® 316L Stainless Steel Composite Filament

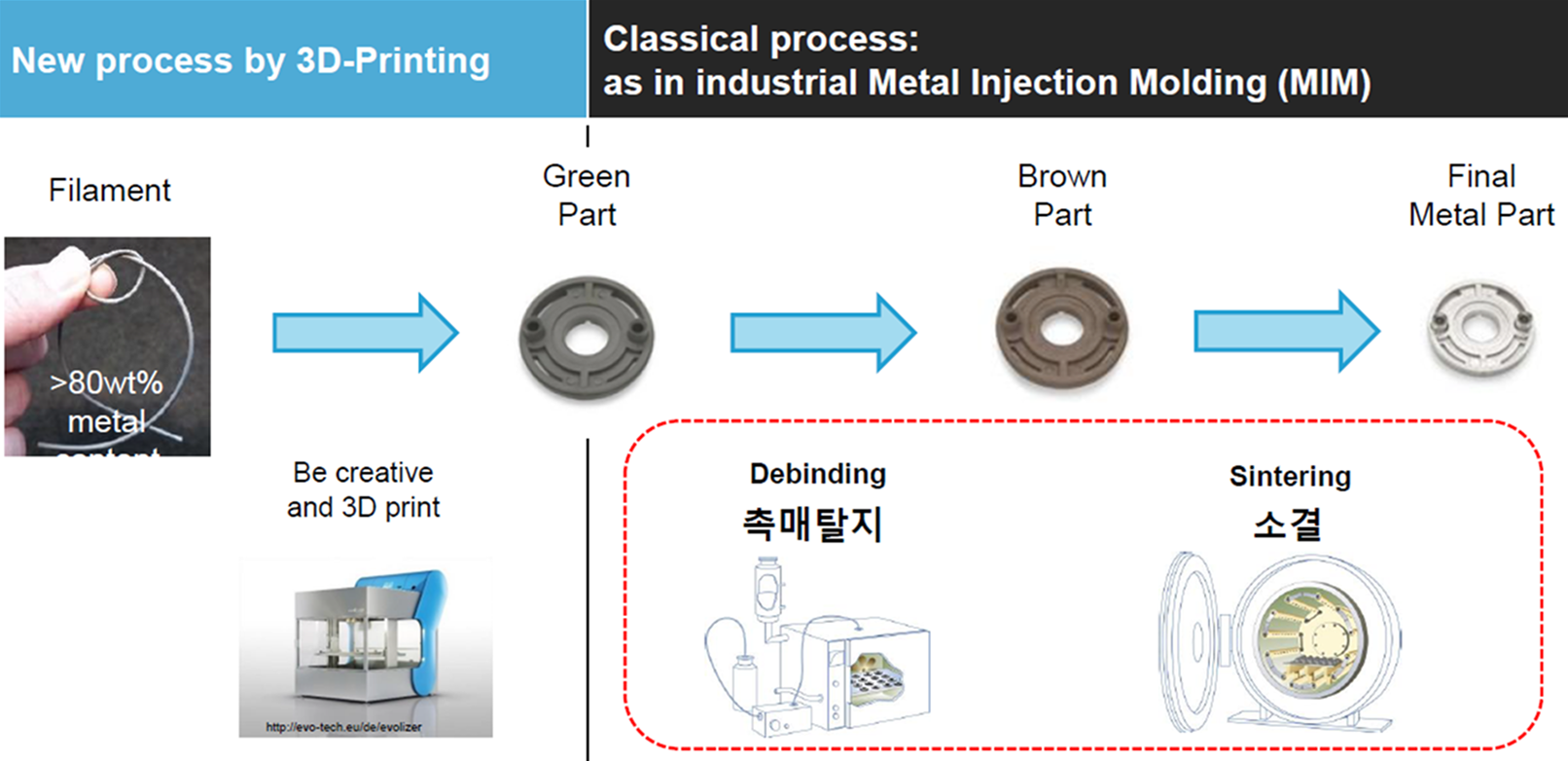

Ultrafuse® 316L is a metal-polymer composite filament for the production of metal components in 316L stainless steel. It enables manufacturing using conventional Fused Filament Fabrication machines, followed by an industry-standardized debinding and sintering process. Our filament has a non-slip surface allowing it to be applied in most Bowden or direct-drive extruders. Thanks to its high flexibility, it can be fed through complex idler pulleys and multiple filament transportation systems in printers – no extra drying required.
| 분류 | 직경 (1.75mm) | 직경 (2.85mm) |
|---|---|---|
| 금속 파우더 (wt%) | > 80 | > 80 |
| 밀도 (g/cm³) | 5 | 4.8 |
| 한 Spool 길이 (m) | 250 | 100 |
| 한 Spool 무게 (kg) | 3 | 3 |
| 특성 | 일반값 |
|---|---|
| 압출기 온도 °C | 235 |
| 조형 플랫폼 온도 (°C) | 90 |
| 노즐직경 (mm) | 0.4 |
| 인쇄 속도 (mm/sec) | 30 |
| 층 높이 (mm) | 0.15 ~ 0.20 |
| 분류 | 밀도 (g/cm3) | RO.2 (항복강도) | Rmax (인장강도) | 연성 (%) | 탄성계수 (GPa) |
|---|---|---|---|---|---|
| Bulk 원재료 | 7.87(100%) | 290 Mpa | 560 Mpa | 30 ~ 51 | 190 ~ 205 |
| 금속분말사출성형 (MIM) | 98 ~ 99% | 180 Mpa | 540 Mpa | 60 | 192 |
| FFF (FDM) 프린팅 | 90 ~ 99% | 174 Mpa | 550 Mpa | 56 | 174 |
| SLM (SLS) 프린팅 | > 99.5% | 486 Mpa | 680 Mpa | 52 | 195 |
